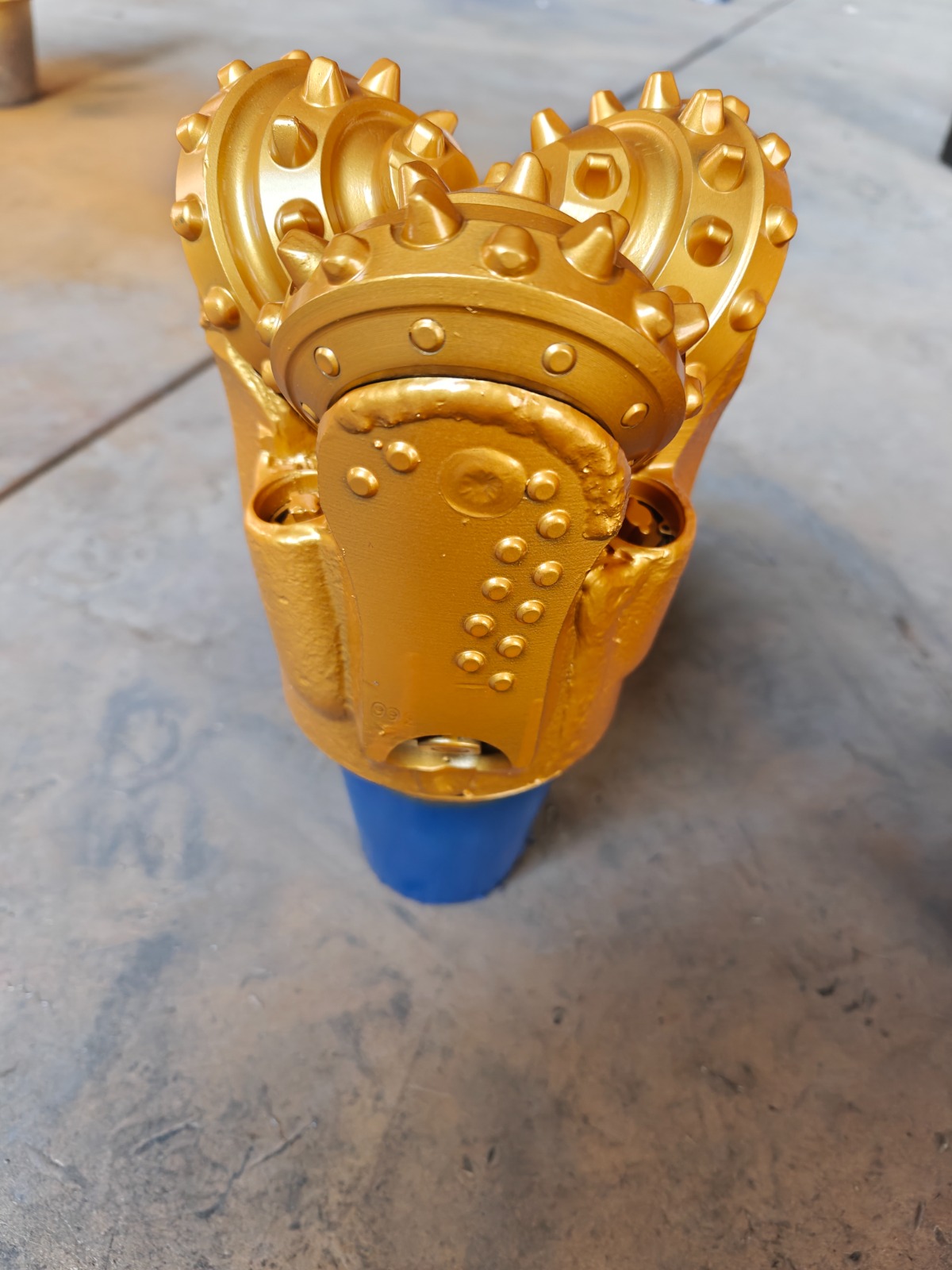

مته حفاری سه‌مخروط "7/8 5 – مدل FJ537G – کد IADC 537
مته سه‌مخروط "FJ537G -IADC 537 -5 7/8، برای حفاری چاههای آب، نفت و گاز، معدن و زمین‌گرمایی در سازندهای نرم تا متوسط طراحی شده است. قطر دقیق ۱۴۹.۲ میلی‌متر، اتصال "API REG 3 1/2 وزن ۱۶ تا ۱۷ کیلوگرم، ارتفاع ۲۷۰ میلی‌متر و بسته‌بندی ۳۰۰×۱۶۰×۱۶۰ میلی‌متر دارد.
مشخصات فنی کلیدی
- سیستم یاتاقان: ژورنال برینگ با آب‌بند فلزی پیشرفته که نسبت به آب‌بندهای الاستومری معمولی در برابر دمای بالا و سیالات تهاجمی مقاوم‌تر است و از نفوذ کنده و گل به یاتاقان جلوگیری می‌کند.

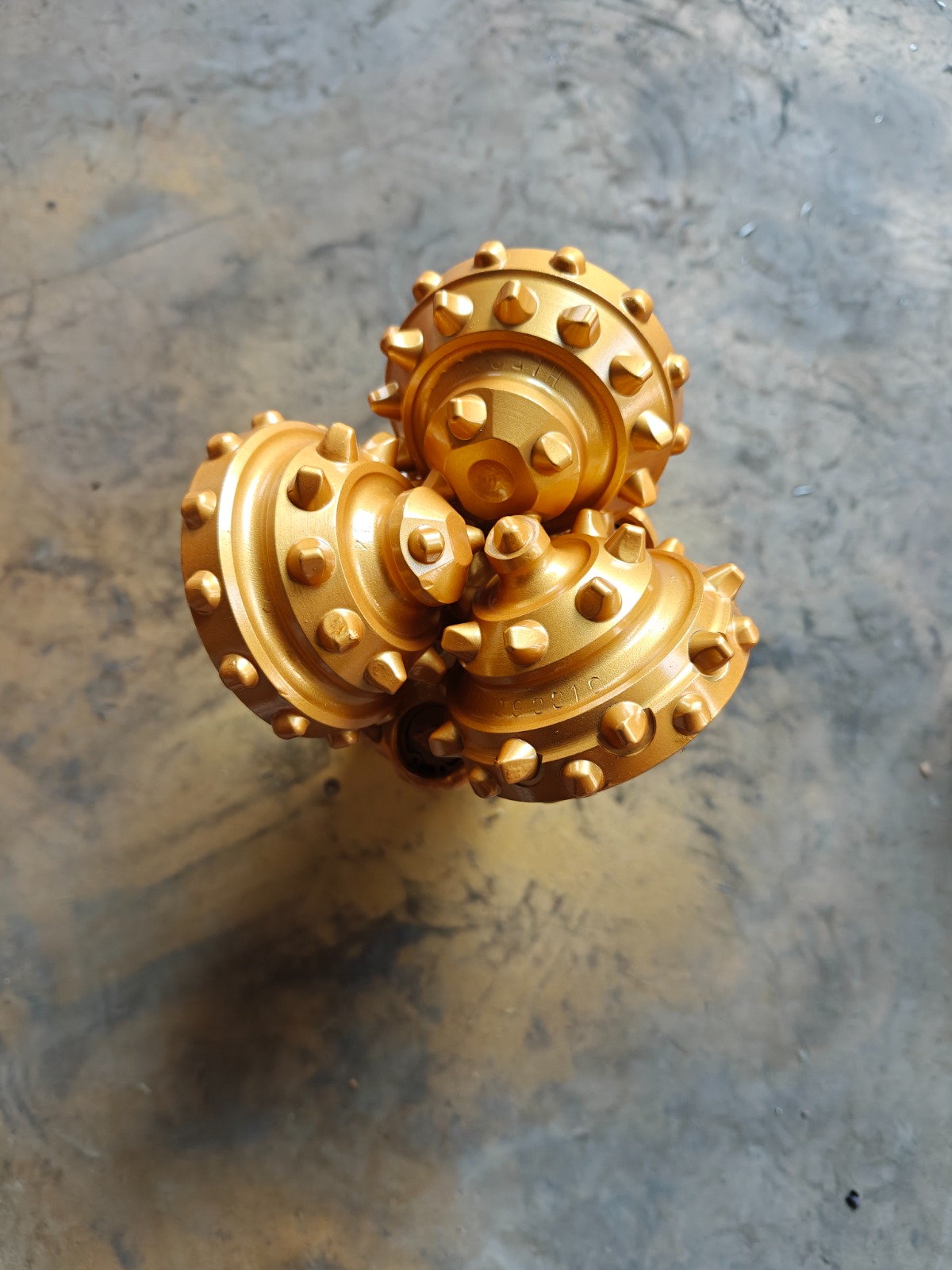

- ساختار برش: اینسرت‌های کاربیدی Crested Scoop در ردیف داخلی برای سازندهای نرم و اینسرت‌های گوه‌ای (Wedge) در ردیف خارجی برای تقویت برش گیج و پایداری. چیدمان نامنظم اینسرت‌ها ارتعاشات هارمونیک را مختل و بار ضربه را یکنواخت توزیع می‌کند و نرخ نفوذ و مقاومت در برابر خستگی را بالا می‌برد.
- معنی کد IADC 537:
- رقم ۵ = مته اینسرت کاربیدی تنگستن
- رقم ۳ = مناسب سازندهای نرم تا متوسط با مقاومت فشاری پایین
- رقم ۷ = یاتاقان ژورنال آب‌بندشده با آب‌بند فلز-به-فلز.
- پارامترهای عملیاتی: سرعت چرخش ۶۰ تا ۲۲۰ دور در دقیقه، وزن روی مته ۰.۴۵ تا ۱.۰ کیلونیوتن بر میلی‌متر قطر مته، گشتاور بستن نهایی ۹.۵ تا ۱۲.۲ کیلونیوتن‌متر.
- محافظت از گیج (اختیاری): روکش سخت کاربید تنگستن روی لبه‌های شانه‌ای و اینسرت‌های اضافی در پاشنه مخروط برای حفظ قطر کامل چاه و جلوگیری از Under-gauge.
- هدایت‌پذیری: مناسب چاههای عمودی، حفاری با موتور و سیستم‌های هدایت‌پذیر چرخشی (RSS) در مسیرهای جهت‌دار و افقی.
- کیفیت: تولید مطابق API و اتصال منطبق با API 3-1/2 REG با کنترل کیفیت جامع.
کاربرد و مزایا
مناسب حفاری شیل نرم تا متوسط، سنگ آهک، ماسه‌سنگ و سازندهای با لایه‌های سخت و ساینده. مزایای اصلی: نرخ نفوذ بالاتر و کاهش ساعات چرخش، مقاومت سایشی یکنواخت و کاهش سفرهای مته و زمان غیرمولد (NPT)، مقاومت ضربه بالای یاتاقان آب‌بند فلزی در سازندهای متناوب، و در نتیجه کاهش هزینه به ازای هر متر.
جمع‌بندی
FJ537G ترکیبی متوازن از برش تهاجمی، دوام یاتاقان و حفظ گیج است؛ گزینه‌ای قابل اعتماد و مقرون‌به‌صرفه برای حفاری در سازندهای نرم تا متوسط.
Tri cone Rock Bit 5 7/8” / Model FJ537G / IADC Code 537
Engineered for superior performance across water well drilling, oil and gas exploration, mining operations, and geothermal projects, the 5 7/8" tricone drill bit—classified under IADC code 537—delivers a compelling combination of robust construction and intelligent design. With a precise diameter of 149.2 millimeters and a 3 1/2" API REG threaded connection, this bit weighs approximately 16 to 17 kilograms and stands 270 millimeters in overall height, packaged conveniently at 300 by 160 by 160 millimeters for secure transport and storage. At the heart of its mechanical reliability lies a journal bearing system paired with an advanced metal seal, a configuration that substantially outperforms conventional elastomeric seals by withstanding extreme temperatures and aggressive drilling fluids while effectively barring cuttings and mud from penetrating the bearing assembly—an engineering choice that directly translates into extended operational life and fewer costly interruptions.
:Recommended Operating Parameters
To achieve optimal drilling efficiency, the manufacturer specifies a rotary speed range of 60 to 220 RPM, a weight-on-bit of 0.45 to 1.0 kilonewtons per millimeter of bit diameter, and a final make-up torque between 9.5 and 12.2 kilonewton-meters. These carefully calibrated parameters allow rig crews the flexibility to fine-tune performance according to formation characteristics and drilling methodology, ensuring that the bit operates at its peak without compromising component integrity or accelerating wear.
:Cutting Structure & Insert Design

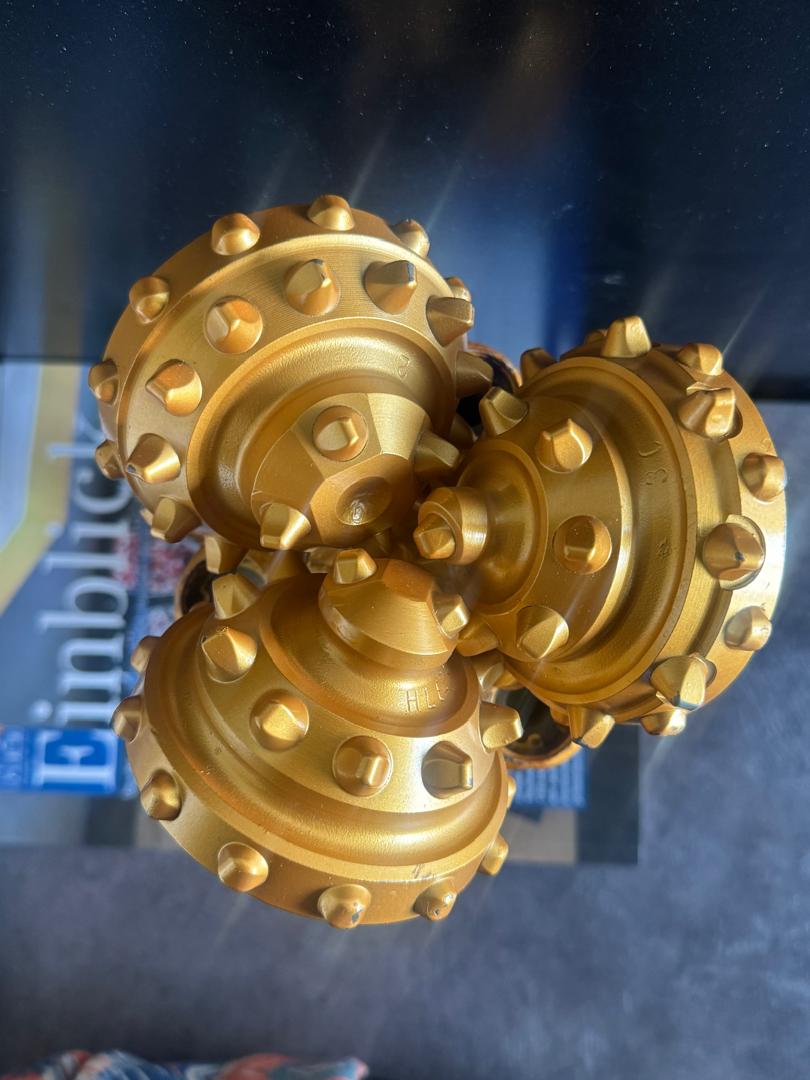

What truly sets this bit apart, however, is its thoughtfully engineered cutting structure. The inner rows feature offset crested scoop carbide inserts—aggressive shearing elements specifically shaped to excel in soft formations where rapid rock removal is paramount. Complementing these are wedge-shaped carbide inserts deployed along the outer rows, which reinforce cutting action at the gauge and contribute significantly to overall bit stability during rotation. Perhaps most ingenious is the inequable, non-uniform spacing of these inserts across the cone surfaces; this deliberate irregularity serves to disrupt harmonic vibrations, distribute impact loads more evenly across individual cutters, and ultimately enhance both penetration rates and the bit's resistance to premature fatigue. Together, these design choices create a synergistic effect that delivers consistently high performance across a range of lithologies.
:IADC Classification & Formation Suitability
Decoding the IADC 537 designation reveals three critical attributes: the numeral 5 confirms this as a tungsten carbide insert bit, the 3 indicates its suitability for soft to medium formations characterized by low compressive strength, and the 7 certifies the presence of a sealed journal bearing with metal-to-metal sealing. This classification means the bit is not merely a general-purpose tool but a specialized solution for drilling through medium-soft shales, limestones, and sandstones, as well as medium-strength formations that contain harder, abrasive interbeds. In such challenging geological settings, the bit demonstrates remarkable resilience and cutting efficiency, maintaining its aggressiveness even when transitioning between varying layers of hardness.
:Gauge Protection & Durability Enhancement
An optional yet highly valuable feature is the integrated gauge protection system, which applies tungsten carbide hardfacing to the critical shirttail leading edges and positions additional carbide inserts at the heel of each cone. This protective arrangement serves a dual purpose: it actively preserves the full-gauge diameter throughout the drilling run, preventing the all-too-common problem of under-gauge holes, and simultaneously shields the most wear-prone zones from abrasive destruction. The result is a bit that not only drills faster but also finishes each run with its dimensional integrity intact, delivering cleaner, more uniform wellbores that simplify subsequent casing and completion operations.
:Competitive Advantages & Operational Excellence
From a competitive standpoint, this 5 7/8" model offers several decisive advantages that procurement managers and drilling engineers will immediately recognize as value drivers. First, the optimized cutting structure—with its thoughtful combination of crested scoop and wedge inserts—yields superior rates of penetration in soft to medium formations, directly reducing rotating hours and lowering overall drilling costs. Second, the premium tungsten carbide material, manufactured under rigorous quality protocols, ensures consistent wear resistance and predictable performance across multiple runs, minimizing the frequency of bit trips and the associated non-productive time. Third, the metal-sealed journal bearing outperforms open-bearing designs by a substantial margin, offering not only greater load-carrying capacity but also exceptional shock resistance—a crucial advantage when drilling through interbedded sequences where impact loads can spike without warning.
:Steerability & Versatility in Directional Drilling
Beyond raw durability, this bit excels in terms of steerability, making it equally suitable for vertical wells, motor-assisted drilling, and rotary steerable systems. Its design accommodates the demanding steering forces encountered in directional and horizontal applications without sacrificing cutting efficiency or gauge protection, giving operators the confidence to deploy it in increasingly complex well trajectories where tool reliability is non-negotiable. The broad RPM window—from 60 to 220 revolutions per minute—further enhances its versatility, allowing seamless adaptation to different bottom-hole assemblies and drilling modes
:Quality Assurance & Industry Compliance
It is equally important to emphasize that every stage of manufacturing, from material selection to final inspection, adheres strictly to API specifications, with the threaded connection conforming precisely to API 3-1/2 REG standards. Dimensional accuracy is maintained within tight tolerances, and comprehensive quality control procedures are applied throughout production, ensuring that each bit delivered to the rig site meets the same exacting standards of precision and reliability. This unwavering commitment to quality gives procurement teams the assurance they need when sourcing critical equipment for high-stakes drilling campaigns
:Final Summary
In essence, the 5 7/8" IADC 537 tricone bit represents a thoughtfully balanced fusion of aggressive cutting action, rugged bearing protection, and intelligent gauge preservation, all packaged within a compact yet powerful tool designed for the realities of soft to medium formation drilling. For oilfield service companies, drilling contractors, and national oil companies seeking to optimize their cost-per-meter metrics while maintaining borehole quality and operational uptime, this bit offers a proven, technically sound solution that consistently delivers on its promises—and does so with the kind of reliability that turns a routine drilling run into a genuinely productive one
