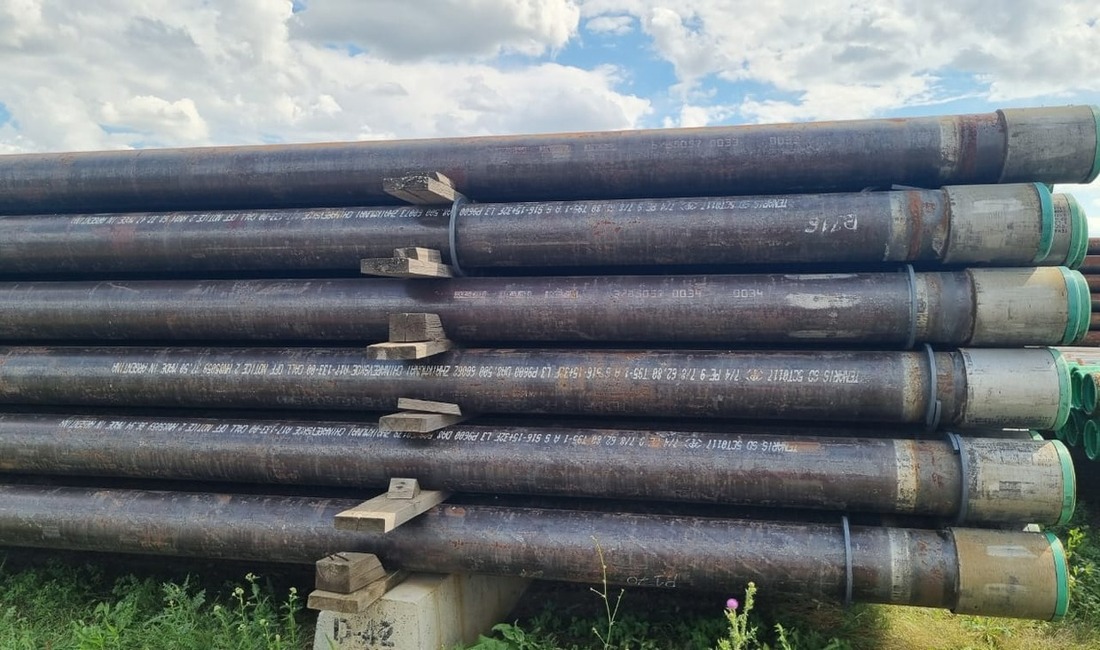

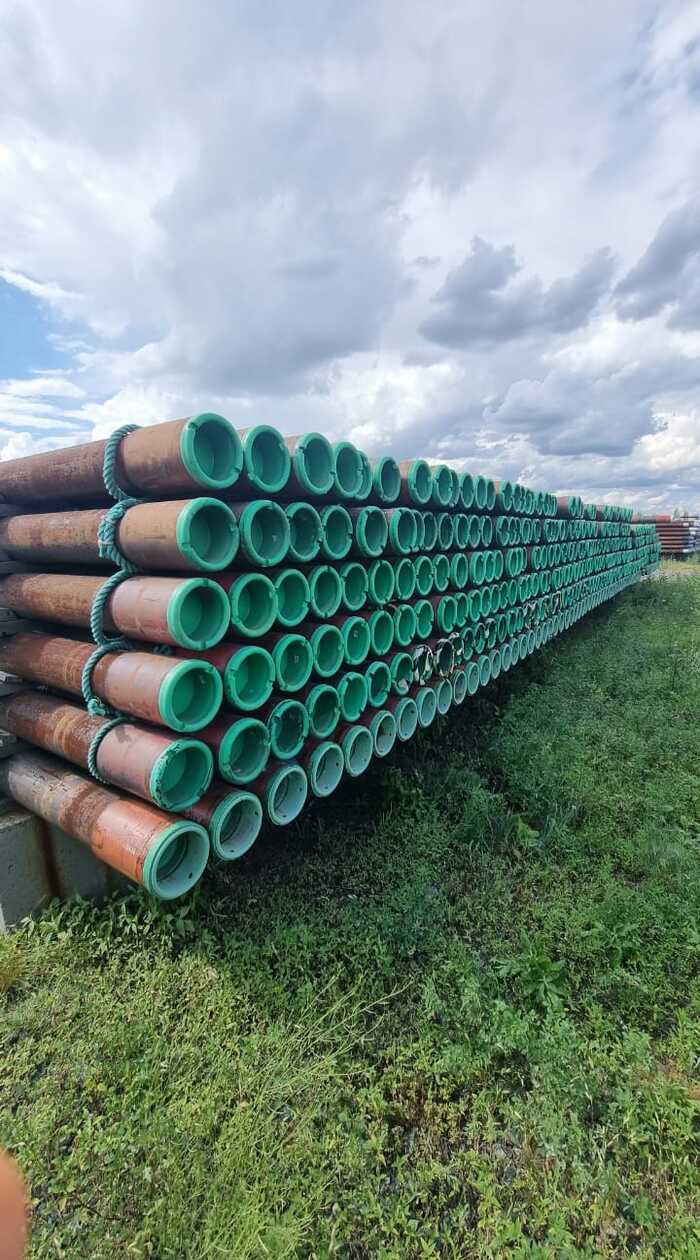

casing pipe 9 7/8"/ T-95 grade/ Tenaris manufacturing/ sour service casing/ TSH Blue connection/ HPHT casing
The 9 7/8" casing pipe with T-95 Type 1 grade manufactured by Tenaris represents one of the most advanced and specialized products in the oil and gas industry for critical applications and challenging operational conditions. This product uniquely combines high mechanical strength, resistance to sour environments containing hydrogen sulfide (H2S) and carbon dioxide (CO2), and the premium TSH Blue connection, making it an ideal choice for deep, high-pressure, high-temperature (HPHT) wells and corrosive environments. The 9 7/8" nominal diameter, being a strategic size for production casing strings and drilling liners in complex well geometries with deviated and horizontal trajectories, finds extensive application in the industry
Metallurgical and Mechanical Analysis of T-95 Type 1 Grade
The T-95 grade, classified within the restricted yield strength steel group under API 5CT standard, demonstrates exceptional performance against axial loads and internal/external pressures with minimum yield strength of 95,000 psi (655 MPa) and ultimate tensile strength ranging from 105,000 to 125,000 psi (724 to 862 MPa) . The Type 1 designation indicates controlled metallurgical requirements and specific mechanical testing protocols that render this product suitable for sour service applications . Maximum hardness of 25.4 HRC and rigorous sulfide stress cracking (SSC) testing per NACE TM-0177 standard are key requirements for this grade, ensuring resistance against brittle fracture in H2S-containing environments . Quenched and tempered heat treatment is applied to achieve the optimal microstructure and balance of strength and toughness .
Sulfide stress cracking resistance, SSC, NACE TM-0177, 95,000 psi yield strength, quenched and tempered heat treatment, T-95 Type 1 grade
TSH Blue Premium Connection – Technology and Advantages

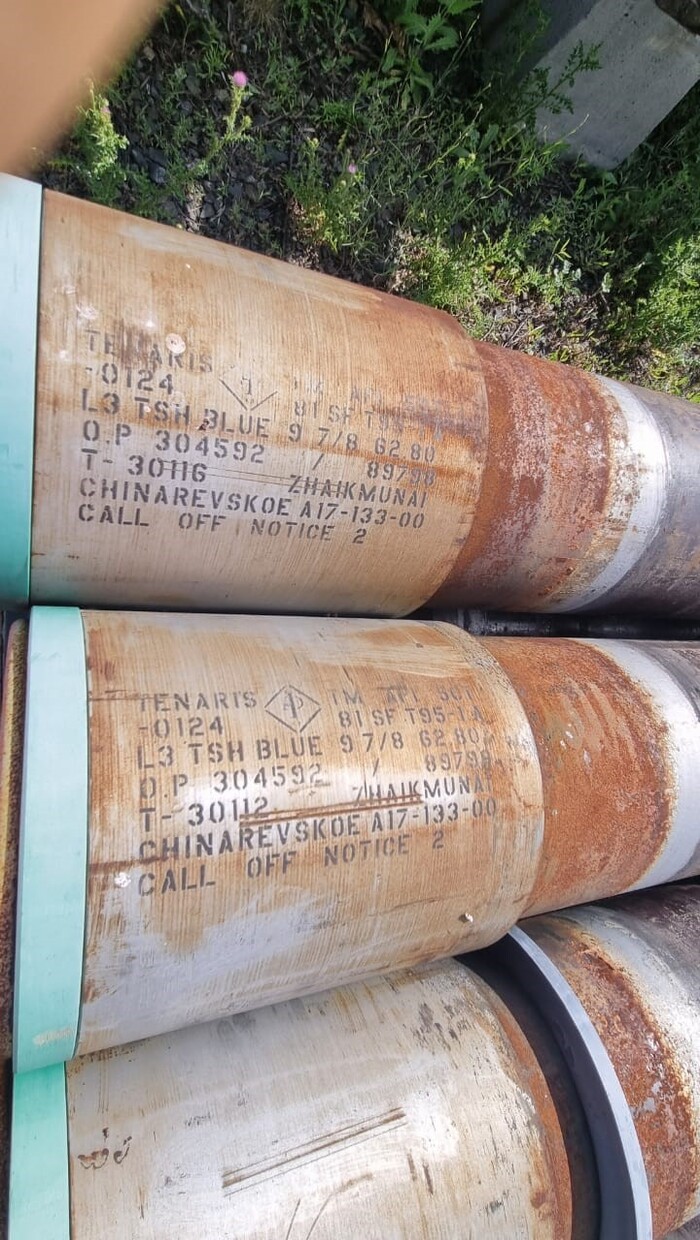

The pipe is supplied with the TSH Blue (Tenaris Hydril Blue) premium connection, recognized as one of the most advanced and efficient gas-tight connections in the oil and gas industry . Developed by Tenaris, this connection features metal-to-metal sealing, a robust shoulder design, and sophisticated thread geometry, delivering exceptional performance against gas and liquid pressures, tensile and compressive stresses, and fatigue from cyclic loading . The Tenaris Hydril Blue technology has proven its performance in wells with deviation up to 90 degrees, build rates up to 14 degrees per 30 meters, and extremely high temperatures . The TSH Blue marking on the pipe body indicates compliance with this premium connection standard . Ease of field make-up, resistance to galling during running operations, and long-term integrity under harsh conditions are among the additional advantages of this connection .
TSH Blue connection, Tenaris Hydril Blue, gas-tight connection, metal-to-metal seal, premium connection, Tenaris Hydril
Standard and Quality Level Analysis – PSL3
This product is manufactured and certified in accordance with API 5CT standard at the highest quality level, PSL3 (Product Specification Level 3), representing the most stringent technical requirements and testing protocols. At this level, in addition to PSL1 and PSL2 standard tests, supplementary requirements such as low-temperature impact testing, ultra-precise dimensional control, 100% non-destructive inspection across the entire pipe cross-section, and complete documentation of all production and test parameters are applied . Mill Test Certificates accompanying the product include comprehensive reports of mechanical, chemical, dimensional, and non-destructive tests, providing full conformity certification with PSL3 requirements. This quality level selection delivers the highest confidence level for critical applications and high-risk wells.
API 5CT PSL3, PSL3 quality level, MTC mill certificate, 100% non-destructive inspection, API 5CT standard, PSL3 casing
R3 Length Range and Its Impact on Drilling Operations
The selection of R3 length range, with minimum length exceeding 10.36 meters and maximum reaching approximately 12.8 meters (typically 40 to 42 feet range), delivers substantial operational advantages . Greater individual joint length directly translates to fewer connections per casing string, and since each connection represents a potential leak and failure point, reducing their number minimizes overall operational risk. Furthermore, fewer connections mean reduced running time—a critical economic factor in drilling projects where daily rig costs are exceptionally high, yielding considerable cost savings. Enhanced string integrity through fewer connections improves axial stress distribution and reduces the likelihood of fatigue or connection-induced failure resulting from stress concentration.
R3 length range, R3 casing, reduced connection count, leak risk reduction, running operations, drilling time savings
Nominal Weight 62.8 Pounds per Foot (ppf)
The nominal weight of 62.8 pounds per foot (approximately 93.5 kg/m) for 9 7/8" size provides a wall thickness of approximately 0.625 inches (15.9 mm), delivering adequate collapse resistance against internal and external pressures while remaining economically competitive with alternative options in the market . This weight and thickness combination represents one of the most common specifications for production applications in medium to high-pressure wells, enabling smooth running operations and effective cementing procedures. Field studies have demonstrated that this weight combination performs optimally in offshore and onshore wells with complex geometries.
Operational Applications and Optimal Conditions
Based on the aforementioned characteristics, this product is designed for a specific spectrum of drilling applications, chief among them being: Production Casing Strings in high-pressure, high-temperature (HPHT) wells requiring superior mechanical strength and gas-tight sealing integrity ; Drilling Liners in deviated and horizontal wells with high build rates ; Sour Service Wells containing hydrogen sulfide and carbon dioxide requiring resistance to sulfide stress cracking (SSC) ; and Wells with complex geometries and extended reach demanding connections with high tensile and compressive efficiency and fatigue resistance
