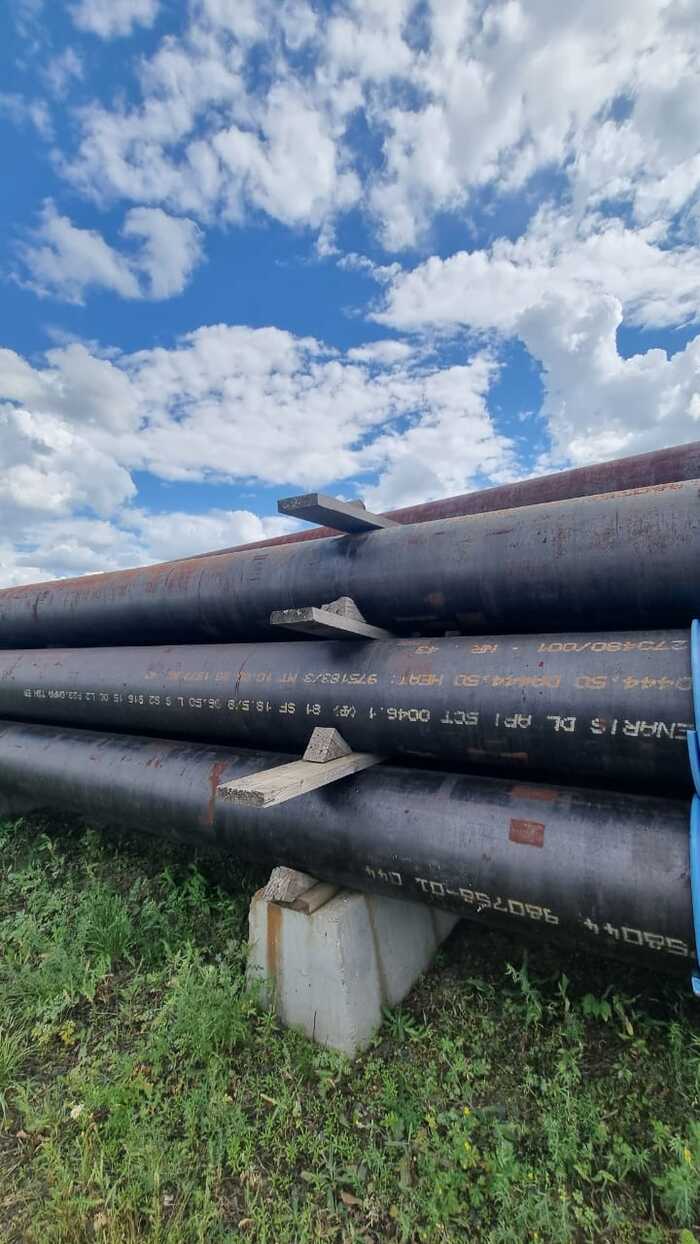

Casing 18 5/8"/ K55 Grade by Tenaris
:Product Introduction and Positioning
The 18 5/8" casing pipe with K55 grade manufactured by Tenaris represents one of the most widely consumed and economically viable solutions in the oil and gas drilling industry, specifically designed for surface and intermediate casing strings in wells with standard to moderately deep operational conditions. Leveraging Tenaris's half-century legacy in seamless pipe manufacturing, this product strikes an intelligent balance between mechanical strength, favorable weldability, and cost-effectiveness. The 18 5/8" nominal diameter, being one of the most common sizes for large-bore wellbores, facilitates smooth running operations and effective cementing procedures, while the nominal weight of 96.5 pounds per foot (ppf) delivers a wall thickness that maintains adequate collapse resistance against external pressures while remaining economically competitive with alternative options available in the market.
:Metallurgical and Mechanical Analysis of K55 Grade
The K55 grade, classified within the carbon steel family under API 5CT standard, demonstrates reliable performance against axial loads and internal/external pressures with yield strength ranging from 379 to 552 MPa and ultimate tensile strength of minimum 655 MPa. Perhaps the most significant distinction between this grade and its counterpart J55 lies in the substantially higher tensile strength—approximately 138 MPa greater—which enables its application in deeper wells with longer pipe strings where tensile forces become increasingly critical. It should be noted as a fundamental engineering rule that K55 can fully substitute J55, though the reverse is not permissible due to inherent strength limitations. However, with maximum hardness of 23 HRC at PSL1 level, this grade is not designed for hydrogen sulfide-containing environments (sour service) and its utilization must be strictly confined to non-sour wells devoid of H2S. The chemical composition is meticulously controlled to maintain excellent weldability through conventional welding methods while keeping detrimental elements such as sulfur and phosphorus within standard-specified limits.
:Buttress Connection (BTC) – Advantages and ApplicationsThe pipe is supplied with Buttress Thread Coupling (BTC) connection, recognized as one of the most advanced and efficient among standard API thread types. The defining characteristic of this connection lies in its trapezoidal threads with square load flanks, delivering tensile efficiency equivalent to 100% of the pipe body—meaning the connection can withstand tensile forces equal to the pipe itself without introducing a weak link in the casing string. This advantage becomes particularly critical in heavy casing strings where the substantial weight of long pipe columns in upper well sections imposes immense tensile stresses on connections. Furthermore, the Buttress thread design demonstrates significantly superior performance compared to round thread designs such as LTC and STC, which typically offer tensile efficiencies in the range of 60–80%, making it the preferred choice for moderately deep to deep well applications. This connection type exhibits excellent compatibility with cementing operations and running procedures, minimizing the risk of thread galling or damage during installation.
:Standard and Quality Level Analysis – PSL1
This product is manufactured and certified in accordance with API 5CT standard at PSL1 (Product Specification Level 1), representing the base level of quality requirements and standard testing protocols. At this level, chemical composition control follows standard-specified ranges, and non-destructive testing is performed on a sampling basis rather than 100% inspection. Impact testing at low temperatures is not mandatory, which effectively indicates that this product is not intended for extremely cold environments or applications where brittle fracture risk is a concern. A particularly noteworthy technical aspect regarding K55 grade at PSL1 level is that normalizing and tempering heat treatment is not mandatory, allowing the pipe to be supplied in as-rolled condition—this not only reduces production costs but also shortens delivery lead times. Mill Test Certificates accompanying the product include results from tensile, hardness, chemical composition, and dimensional testing, providing full conformity certification with standard requirements.
:R3 Length Range and Its Impact on Drilling Operations
The selection of R3 length range as a key specification of this product delivers substantial operational advantages. Pipes in this range feature minimum length exceeding 10.36 meters and maximum reaching 14.63 meters, which, compared to R1 (less than 6.7 meters) and R2 (6.7 to 10.36 meters) ranges, significantly increases individual joint length. This directly translates to fewer connections per casing string, and since each connection represents a potential leak and failure point, reducing their number minimizes overall operational risk. Moreover, fewer connections mean reduced running time—a critical economic factor in drilling projects where daily rig costs are exceptionally high, yielding considerable cost savings. Additionally, enhanced string integrity through fewer connections improves axial stress distribution and reduces the likelihood of fatigue or connection-induced failure resulting from stress concentration.
:Operational Applications and Optimal Conditions
Based on the aforementioned characteristics, this product is designed for a specific spectrum of drilling applications, chief among them being: Surface Casing Strings, installed to protect freshwater aquifers, prevent borehole collapse, and provide a robust foundation for Blowout Preventer (BOP) installation; Intermediate Casing Strings, employed to isolate unstable formations, control abnormal pressures, and prevent fluid migration between different geological layers; and Wells with standard pressure and temperature conditions in non-sour environments, where no significant hydrogen sulfide concentration is present in formation fluids. Benefiting from K55's higher tensile strength relative to J55, this grade also constitutes a suitable option for medium to moderately deep wells (up to approximately 3000–4000 meters depending on design), and in many onshore and offshore drilling projects with conventional conditions, it stands as the primary choice among well completion design engineers.
